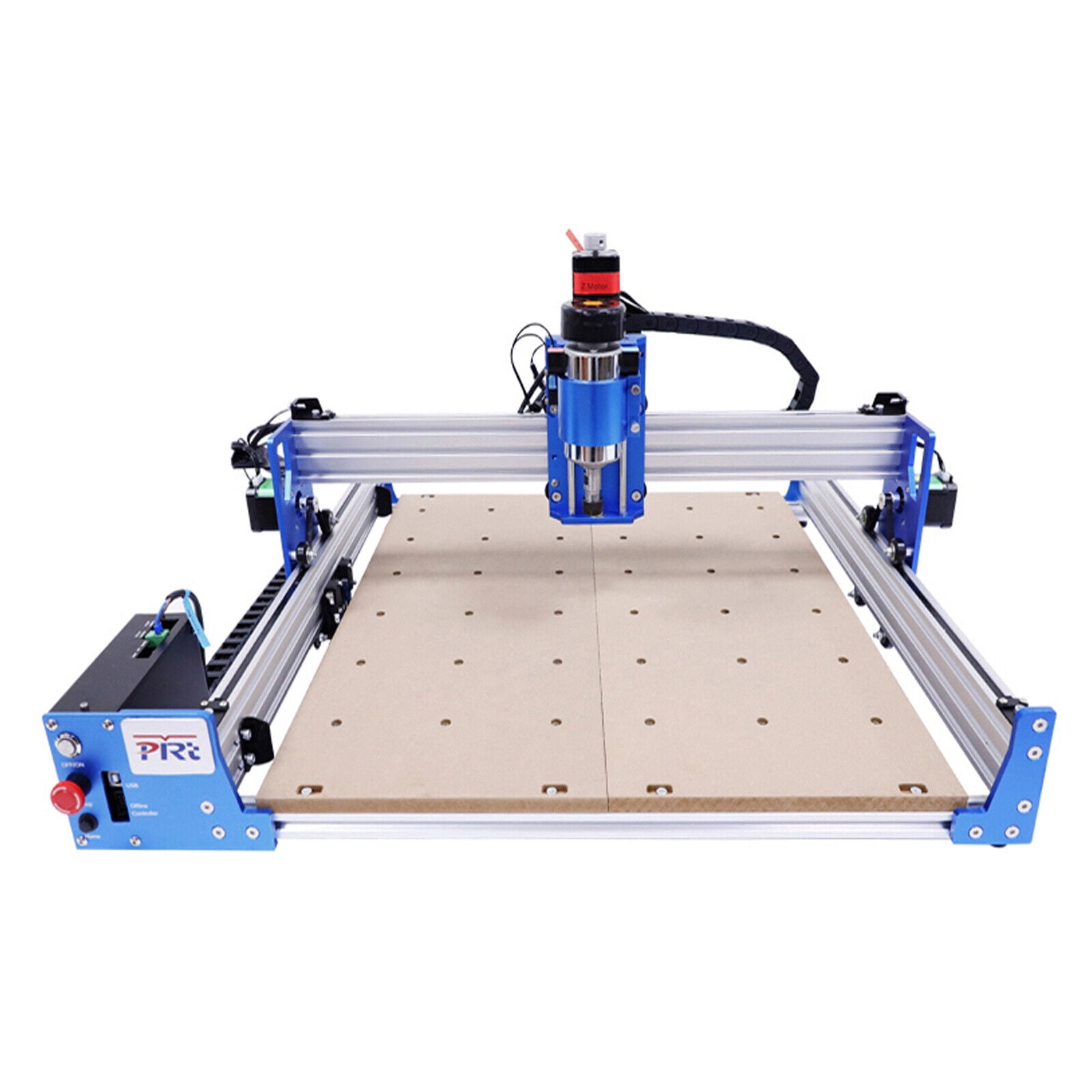

1X3 Axis USB CNC 4040 Router Engraver Milling Drilling Carving Engraving Machine 100W 110V Aluminum

<p> Accurate engraving is not possible without an engraving machine. The aluminum frame engraving machine is more durable, stronger, and has a long service life. The engraving machine with the industrial-grade chip and 75W high-power spindle motor takes a very short time to complete the engraving, which is more highly efficient.&nbsp;It is suitable for industrial technology, advertising design, art, educational programs, amateurs, architectural models, printed circuit boards, etc. It is suitable for engraving plastic and wood.</p> <p> </p> <p><b> Specification </b></p> <p> Color: Blue, Silver </p> <p> Material: Aluminum, Wood </p> <p> Maximum Workpiece Thickness: 78mm/3.07inch </p> <p> Effective Stroke: 400*400*83mm/15.75*15.75*3.27inch </p> <p> Drive Power: 12V 5A </p> <p> Spindle Power: 75W &nbsp; </p> <p> Voltage: 110V </p> <p> Power: 100W </p> <p> Spindle Speed: 0-10000rpm </p> <p> Spindle Accuracy: Radial Runout ≤ 0.05mm </p> <p> Stepper Motor: 42 Two-phase Stepper Motor &nbsp; </p> <p> Rotation Speed: 6000rpm </p> <p> Acceptable Software: GRBL/Candle </p> <p> Communication Interface: USB &nbsp; </p> <p> Gross Weight: 12kg/26.46lbs </p> <p> Engraving Speed: 50-1500mm / min (Depending on the Material Speed Setting) </p> <p> Standard Spindle: 42mm High-Speed Spindle / ER11 Chuck / 3.175mm Clamping Centre </p> <p> Workbench Size: 60*52cm/23.62*20.47inch </p> <p> Product Size: 74.5*61.5*39cm/29.33*24.21*15.35inch </p> <p> Package Size: 67*39*29cm/26.38*15.35*11.42inch </p> <p> </p> <p><b> Package Included </b></p> <p> 1 Set* cutter &nbsp; </p> <p> 1* Z Probe </p> <p> 1* Right-Y-axis </p> <p> 1* U Disk </p> <p> 1* USB </p> <p> 1* Power Supply </p> <p> 1*Power Cable </p> <p> 4* Clamps </p> <p> 1*Manual </p> <p> Other Accessories for Installation </p> <p> </p> <p><b> Notes </b></p> <p> Please read the manual completely before installation and use. And pay particular attention to the safety instructions included.&nbsp; </p> <p> It can't be used to carve hard metals, jade, or other hard objects. </p> <p> Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering. </p>

• Premium Material: The engraving machine with an aluminum frame and wood panel workbench is corrosion-resistant and strong, having a long service life.
• High Efficiency: The engraving machine with the industrial-grade chip and 75W high-power spindle motor takes a very short time to complete the engraving, which is more highly efficient.
• Wide Application: With an effective engraving area of 400*400*83mm, the machine can easily accommodate most projects.
• Good Control Performance: The 42 two-phase stepper motor has good control performance. The starting, stopping, and flipping are done within a few pulses. Also, the machine is equipped with limits in several directions to prevent accidental touching of the edges and to reduce damage to the machine.
• High Accuracy: The engraving machines with industrial-grade chips have precise calculations and can achieve precise engraving of ≤ 0.05mm/0.001inch.
• Stable Operation: The spindle motor with an air cooling system cools the machine, making it stable, reliable, and durable.
• DIY: The mini DIY engraving machine can be used to make gifts for your friends and exercise your hands-on skills. It can make you experience the joy of  DIY by completing your sculptures.
• Easy to Operate: The machine has clearly displayed function buttons and we have provided a manual to enable you to use the machine quickly.

Details

• Straight Square Rails: The straight square rails allow the bearings to work for long periods without affecting performance.
• Emergency Stop Button: You can press the emergency stop button to protect the machine when it is affected or when it is working erratically.
