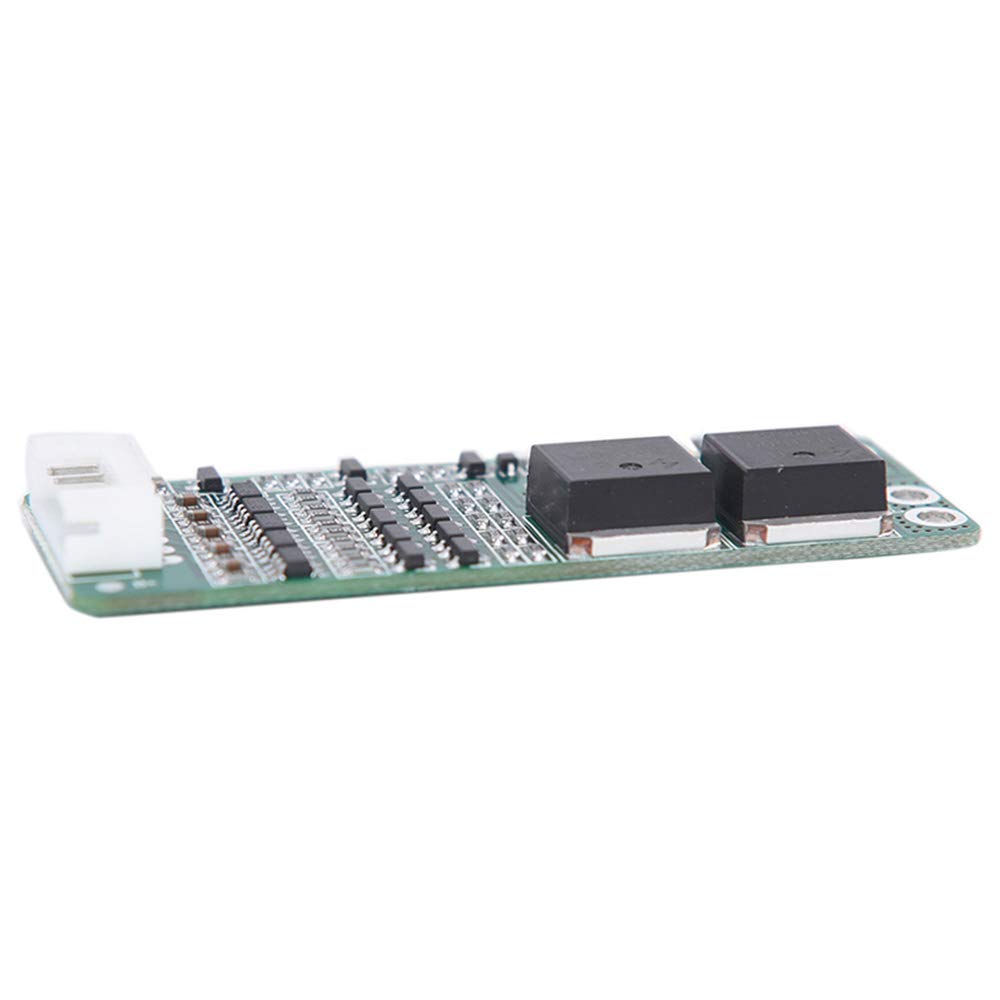

5S 18V 21V 15A 18650 Charger PCB BMS Protection Board, Li-ion Lithium Battery Charger Lipo Cell Module with 6-core Wire

Specifications: Charging voltage: 21V Charge MOS pressure value: 35V Discharge MOS pressure value: 35V Charging current: 56A Continuous discharge current: 15A Over current protection: 50/55/60A Over current protection delay: 20/25/30mS Single power consumption: 30uA Power consumption between batteries: 3uA Single section over charge detection voltage: 4.18- /4.22V Over charge recovery voltage: 4.05- 4.15 V Over charge detection delay: 0.5/1.0/2.0S Single section over discharge detection voltage: 2.75-2.85 V Over discharge recovery voltage: 2.90-3.20 V Over discharge detection delay: 0.5-2.0S Short circuit protection/Over current protection/Overload/Over discharge protection: disconnect load self-recovery Short circuit protection delay: 200/500/600uS The normal working state of B- to P- resistance: 5mΩ Continuous 15A current maximum temperature rise: 25 ℃ Working environment (humidity) relative humidity: ≥98% (long-term stability under the humidity) Working environment (temperature) -30 ~ 80℃(in the lower temperature range of long-term stability) Size: approx. 60*23mm Attention: When you wiring, plese do it strictly according to the wiring diagram. Do not deliberately make it short circuit. Do not mix the good battery and poor battery to use. The internal resistance of 5 battery capacity are closer will be better. Package inlcuded: 1x 5S 15A lithium Battery Protection Board 1x 6-core wire

• High-accuracy voltage detection circuit, fine workmanship and durable.
• MULTIPLE PPROTECTION: Over-discharge protection, overcurrent protection, overcharge protection; Short circuit protection; High charge and discharge current; Compact size and lightweight.
• Short circuit protection/Over current protection/Overload/Over discharge protection: disconnect load self-recovery.
• Low internal resistance, high power MOS. MOS transistor can control the battery charge and discharge, low standby current consumption.
• Applications: Use for variety of capacities and various shapes 3.7V lithium batteries,Massager battery pack, LED light backup power supply, solar street light battery pack, monitor standby power supply, etc.
